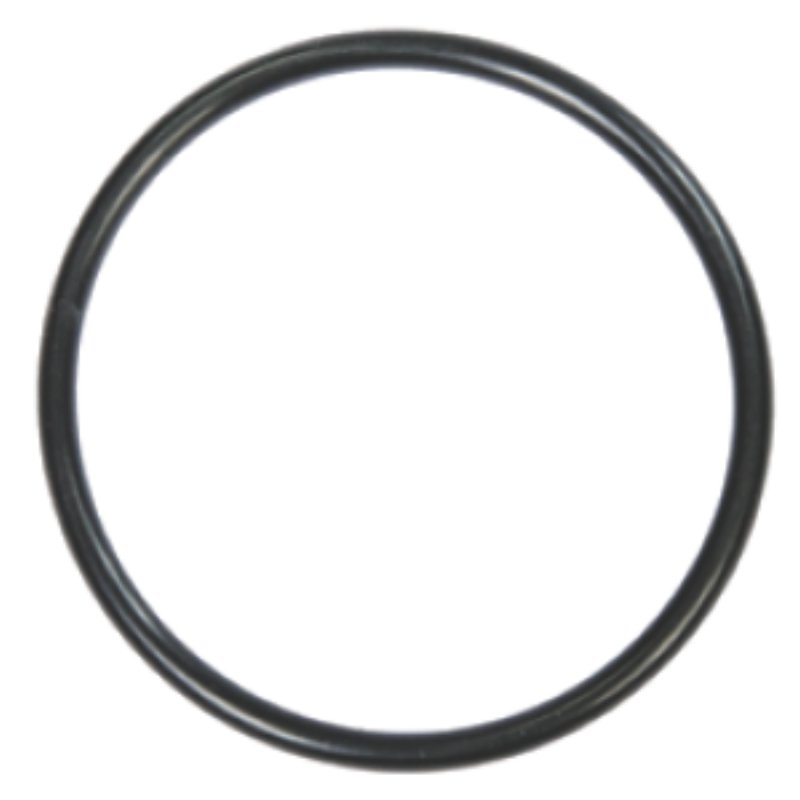

For this compression resistance series, it has high physical properties under high temperature operation. Under proper operation, this elastomer can be continuously used under temperature > 300°C. It has lower compression set ration among the Fluomax™.
Applications : Diffusion, Implant Anneal, RTP, valves and tubes… etc.
Operation temperature : Recommended temperature Max. up to 330°C (continuous operation).
Equivalent Kalrez® 7075
CTRB7412 |
|
Rigidity (SHORE A) |
74 |
Max. Operation Temperature for continuous condition (°C) |
330 |
Fluomax™ series. Except for the high stability, superior chemical resistance and sealing function under high temperature, this series also has high mechanical properties among Perflourinated elastomer. |
